📋 Basic Specifications
Work Environment
Low-temperature Heat Pump
Heating Type
Circulating Heat
Application

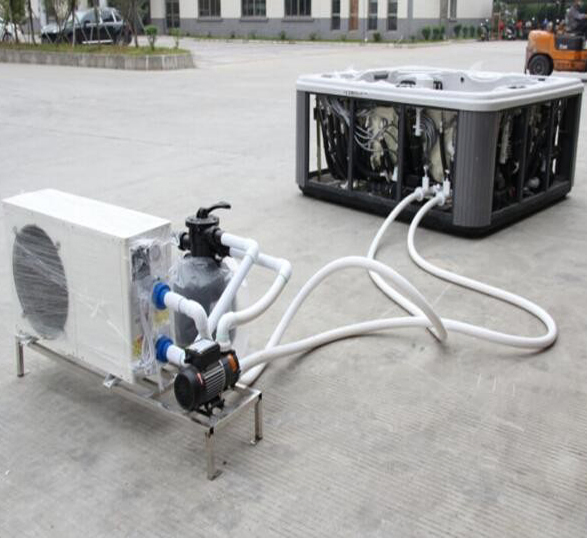

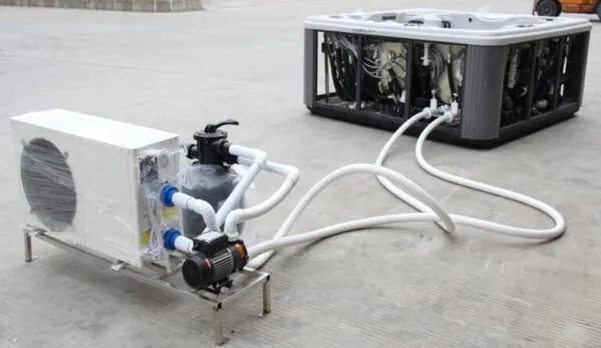

Villa Family, Sauna and Swimming Pool
Certification
CE, ISO9001, CCC, CB, RoHS, SASO
Transport Package
Polywood
📊 Product Overview

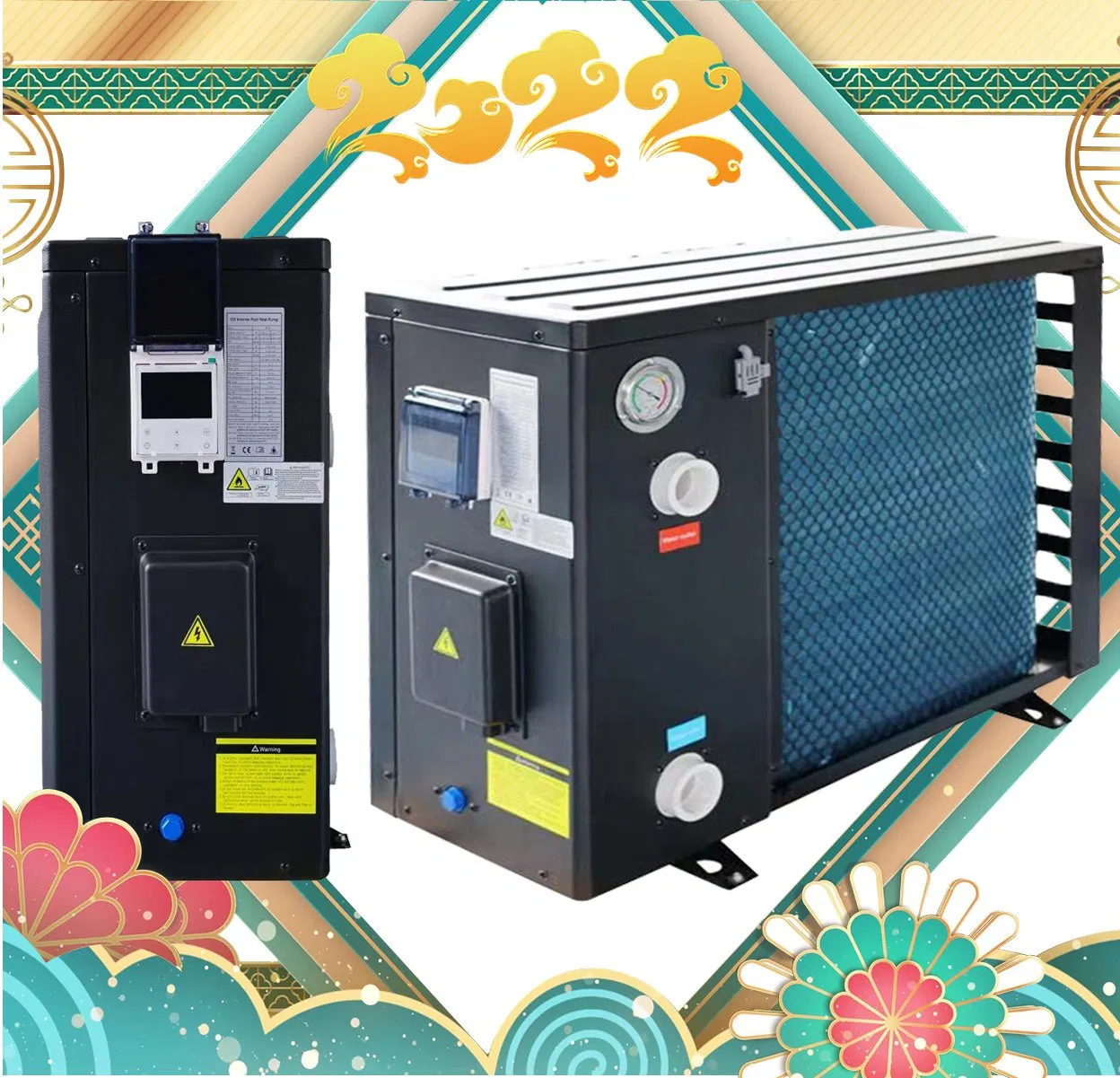

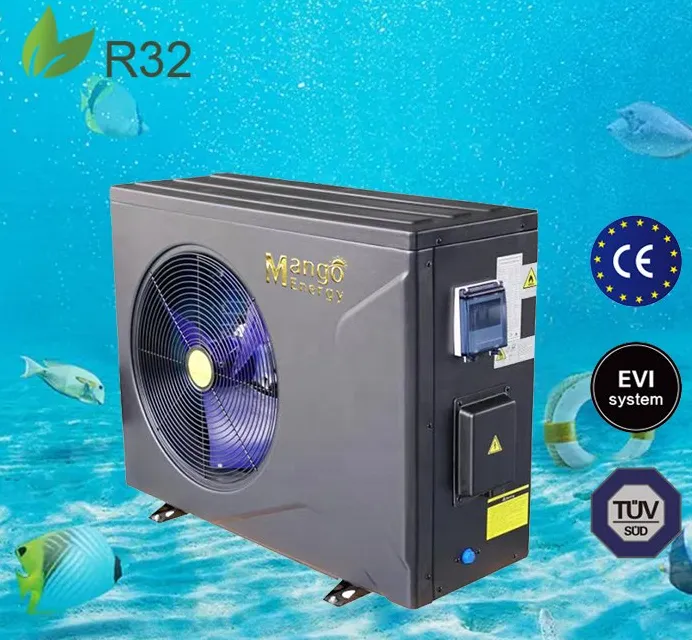

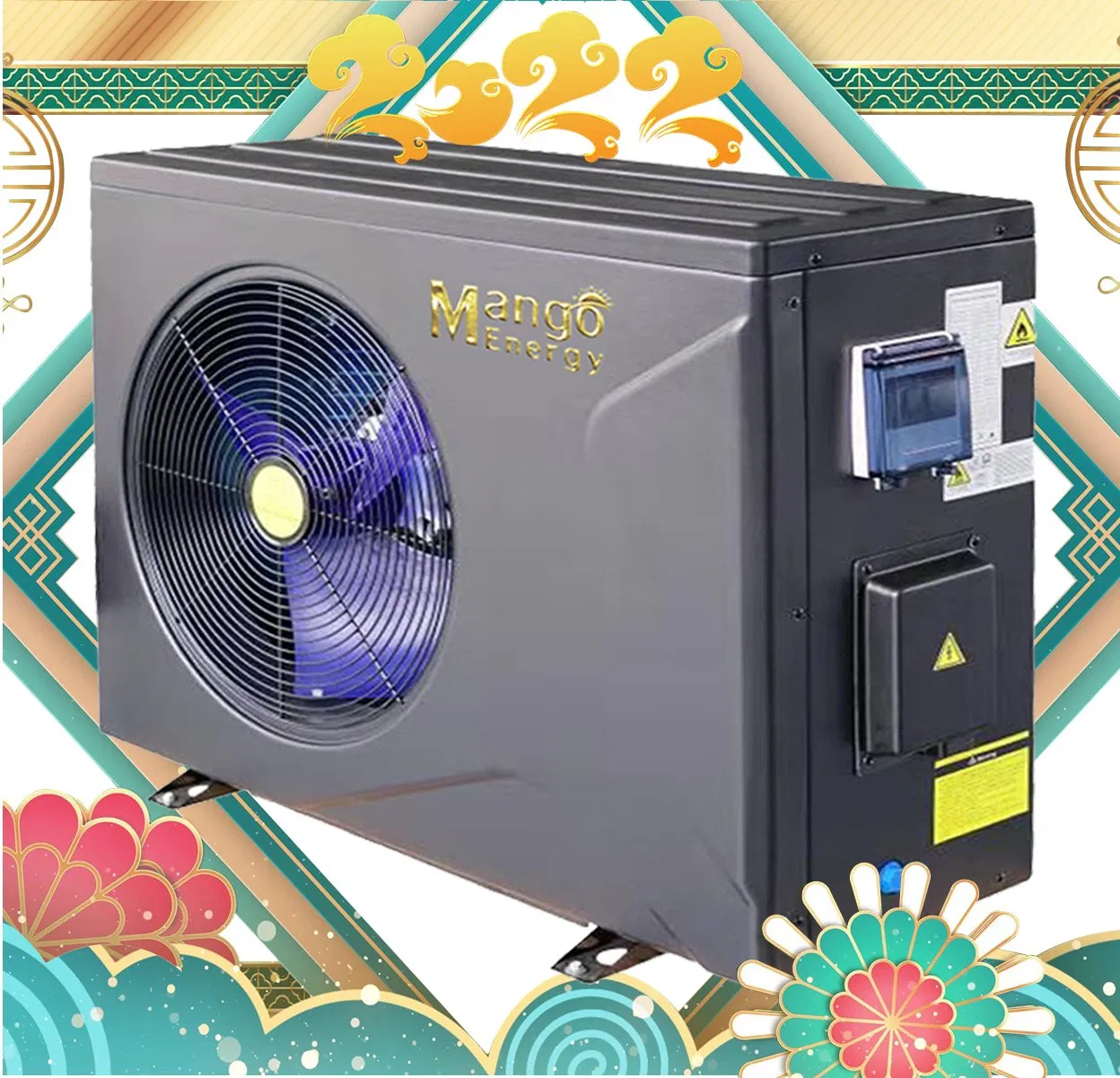

-25°C A+++ WIFI R32 6-13KW DC Inverter SPA POOL Heat Pump Systems

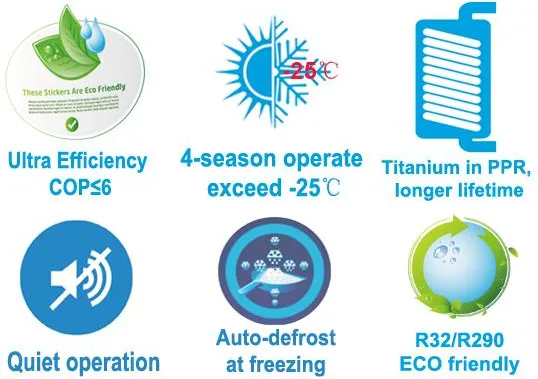

⚡ 1. Super Efficiency
Top SCOP in cold conditions, ENERGY SAVING in homoeothermy. Featuring Panasonic/GMCC/Toshiba/Sanyo Inverter Dual Rotary compressor and ECO R32/R410/R290 refrigerant for maximum heat capacity with minimal environmental impact.

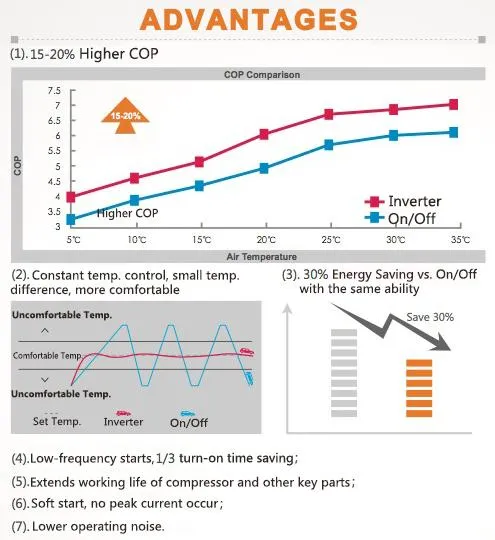

🔄 2. Ultra Frequency Conversion Technology
Adopts AC-DC-AC power conversion technology with a powerful control system. Integrates V/F, vector control (VC), and direct torque control (DTC) to achieve precise variable frequency PID calculus.
📶 3. Advanced Operating System
Ultra-intelligent system with WIFI availability. Features specialized Moto IC with superior heat dissipation circuit board design for longer service life, exceeding standard industry brands.
🛡 4. Soft-start and Soft-shutdown
Protects electrical systems and key parts like Danfoss EEV and SANHUA 4-way valves. Ensures smooth acceleration and transition, avoiding destructive torque impact and reducing voltage sag.
🔇 5. Ultra-silence Operation
Superior low-noise DC infinity fan motor combined with high-density aviation insulation sound-absorbing foam keeps running noise at a minimum for residential comfort.
💎 6. Constant Reliability
High-quality Titanium Tube in PPR Heat Exchanger guarantees durability even after chlorine, salts, and bromine water treatments.
🌡 7. 4-Season 24H Operating
Capable of working in wide ambient temperature ranges from -25ºC to 43ºC, providing consistent water temperature year-round in outdoor installations.
⚙ Technical Data
| DC Inverter EVI Swimming Pool Heat Pump (R32) |
| Model No. | #MGWE-14 |
| Power supply | V/Ph/Hz | 220 - 240 / 1 / 50-60 |
| (A26ºC, RH70% / W26ºC/28ºC) | Heating capacity | kW | 2.5-13.2 |
| Power input | kW | 0.26-2.54 |
| COP | - | 9.61-5.20 |
| (A7ºC, RH70%/W26ºC/28ºC) | Heating capacity | kW | 1.80-7.24 |
| Power input | kW | 0.38-2.05 |
| COP | - | 4.68-3.53 |
| Sound level in 1M | dB(A) | 48 |
| Operate ambient temp range | ºC | -25 - 43 |
| Net Weight | kg | 53 |
| Unit Dimension (L*D*H) | mm | 990*345*670 |

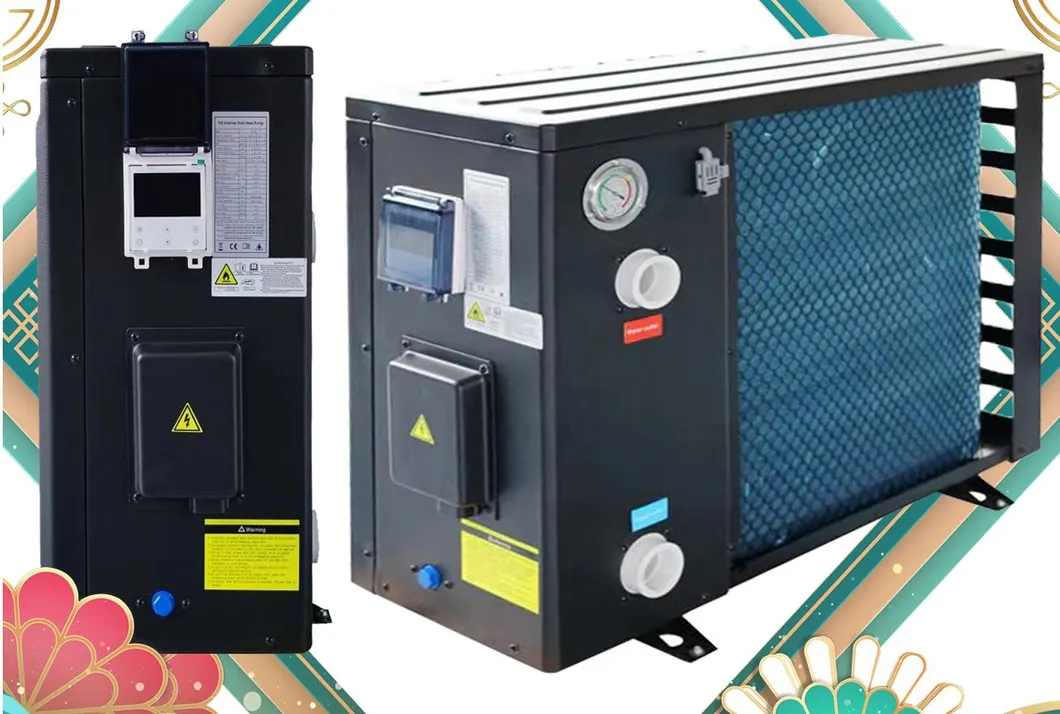

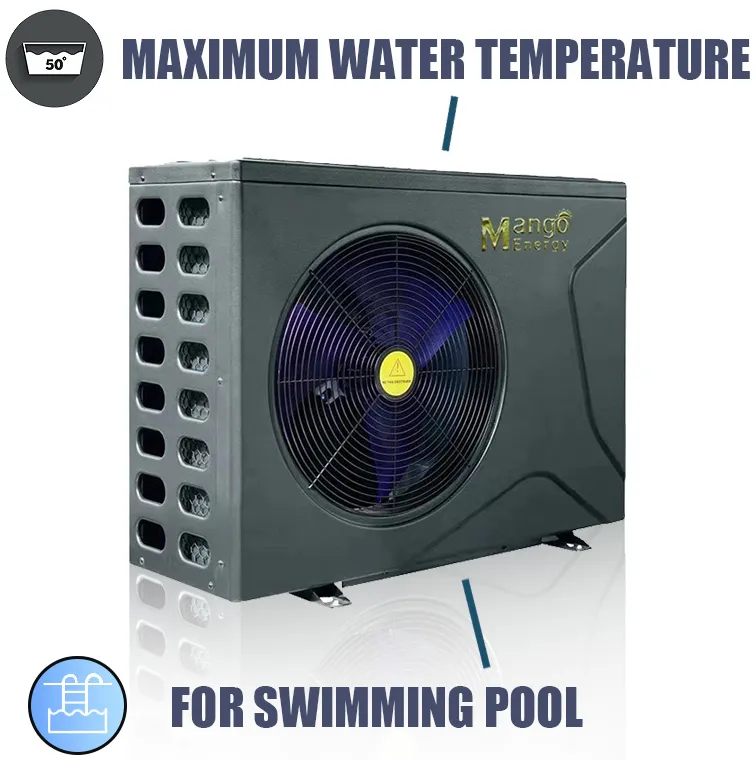

📷 Product Gallery

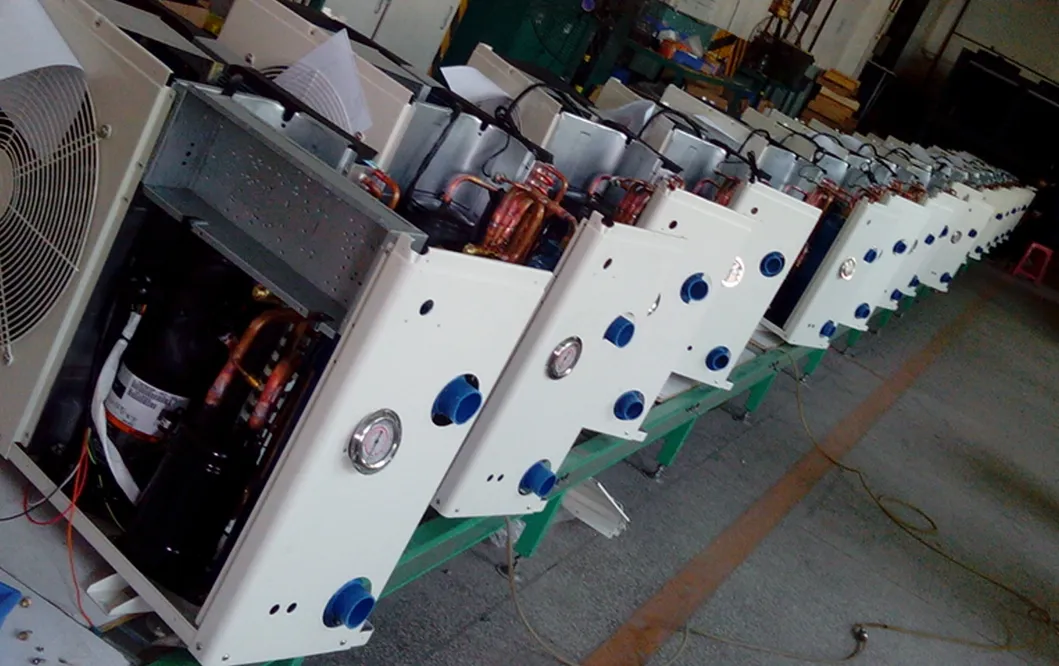

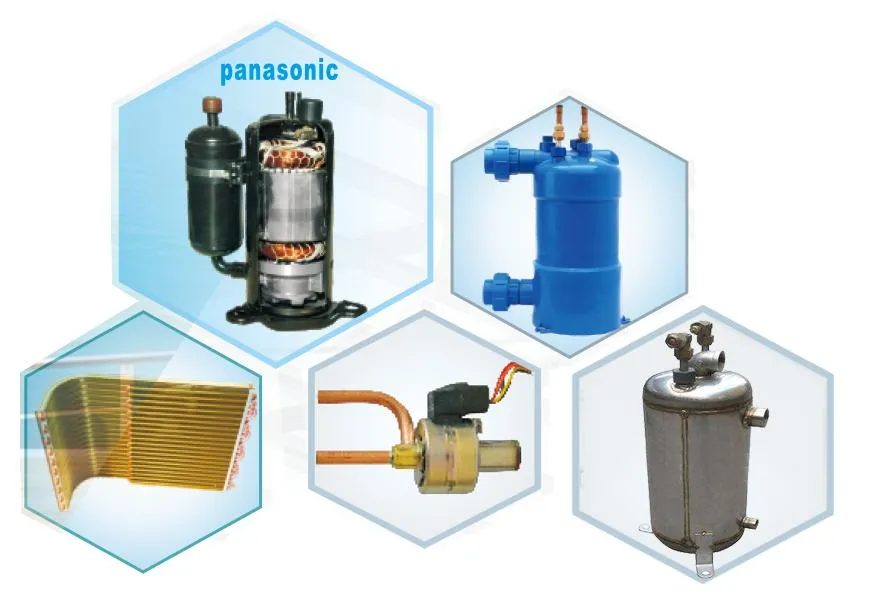

🚀 Key Components & Production
❓ Frequently Asked Questions
What is the lowest operating temperature for this heat pump?
The system is designed with EVI technology allowing it to operate efficiently in ambient temperatures as low as -25°C.
Which compressor brands are used in these units?

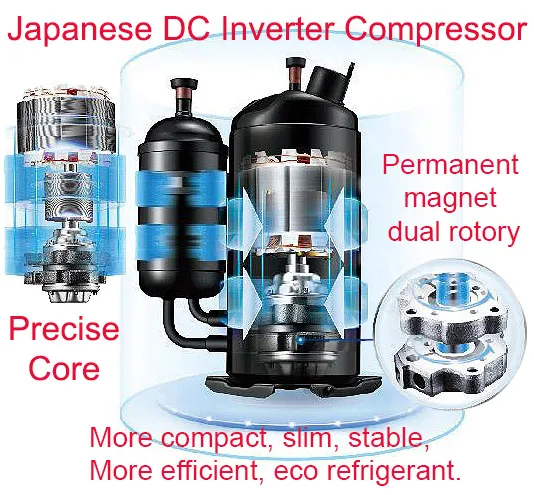

We utilize high-performance DC Inverter Dual Rotary compressors from world-class suppliers such as Panasonic, GMCC, Toshiba, and Sanyo.
Is the heat exchanger resistant to pool chemicals?
Yes, the unit features a high-quality Titanium Tube in a PPR Heat Exchanger, which is specifically designed to resist corrosion from chlorine, salts, and bromine treatments.
Can I control the heat pump remotely?
Yes, the unit comes with a built-in WIFI module and a smart Moto IC controller, allowing for remote operation and monitoring.
How noisy is the unit during operation?
The unit is designed for ultra-silence operation, with a sound level of approximately 48 dB(A) at 1 meter, thanks to its DC infinity fan motor and aviation-grade sound-absorbing foam.
What is the advantage of R32 refrigerant?
R32 is an eco-friendly refrigerant with a lower Global Warming Potential (GWP) and higher efficiency compared to traditional refrigerants, allowing for better performance with a smaller charge.
